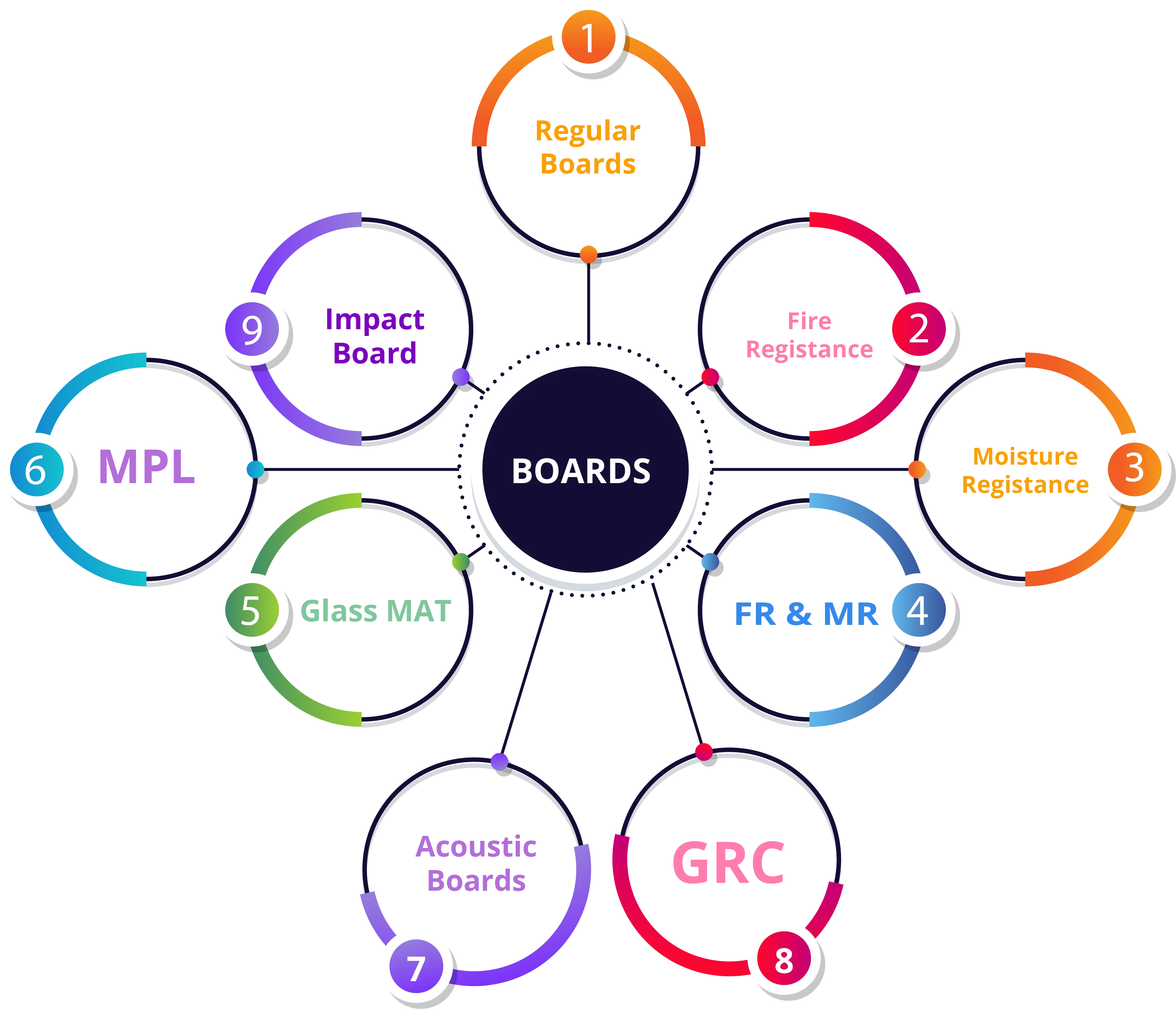

Boards
Journey Towards Success
A wide flat board used to cover walls or partitions, made from plaster or wood pulp or other materials and used primarily to form the interior walls of houses.
Description
Regular Plasterboards are produced from high purity natural gypsum core being sheeted in a closely adhering best-selected paper liners. Boyal Gyp Regular Plasterboard has fiberglass which improves strength and Sag Resistance. It is lightweight for using in standard internal wall and ceiling applications..
Field of Application
Regular Plasterboards are used in Residential Buildings, Commercial Buildings, Hospitals, Airports, Educational Institutions and other constructions.
Manufacturing Standards
Regular Plasterboards are produced to ASTM C1396 / C1396M & EN 520 Type A standards.

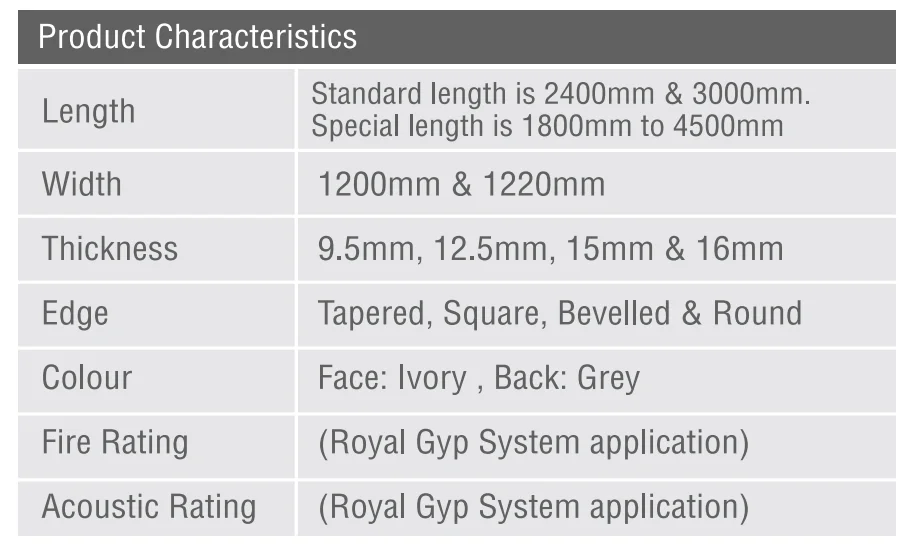

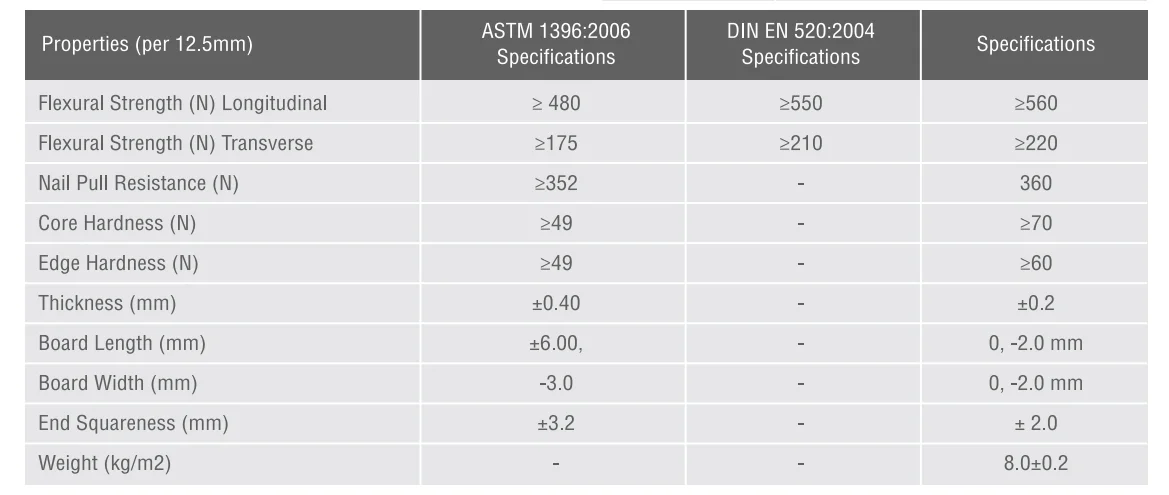

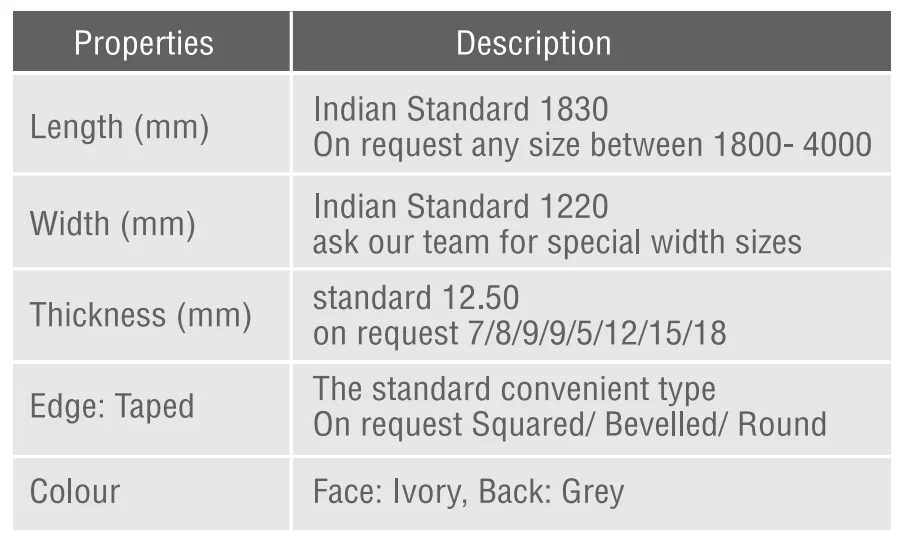

Technical Details of Regular Boards
Description
Fire Plasterboard is lightweight for use in standard internal wall and ceiling applications where fire protection is required. They are produced from high purity natural gypsum core being sheeted in a closely adhering best selected paper liners. Royal Gyp fire Plasterboard has fiber glass which improves strength and Sag Resistance.
Field of Application
Fire Resistant Plasterboards are used in Residential Buildings, Commercial Buildings, Hospitals. Airports, Educational Institutions and other such constructions.
Manufacturing Standards
Fire Resistance Plasterboards are produced to ASTM C1396 / C1396M Type X & EN 520 Type I, F standards. Tested accordance to ASTM E84 & ASTM 473

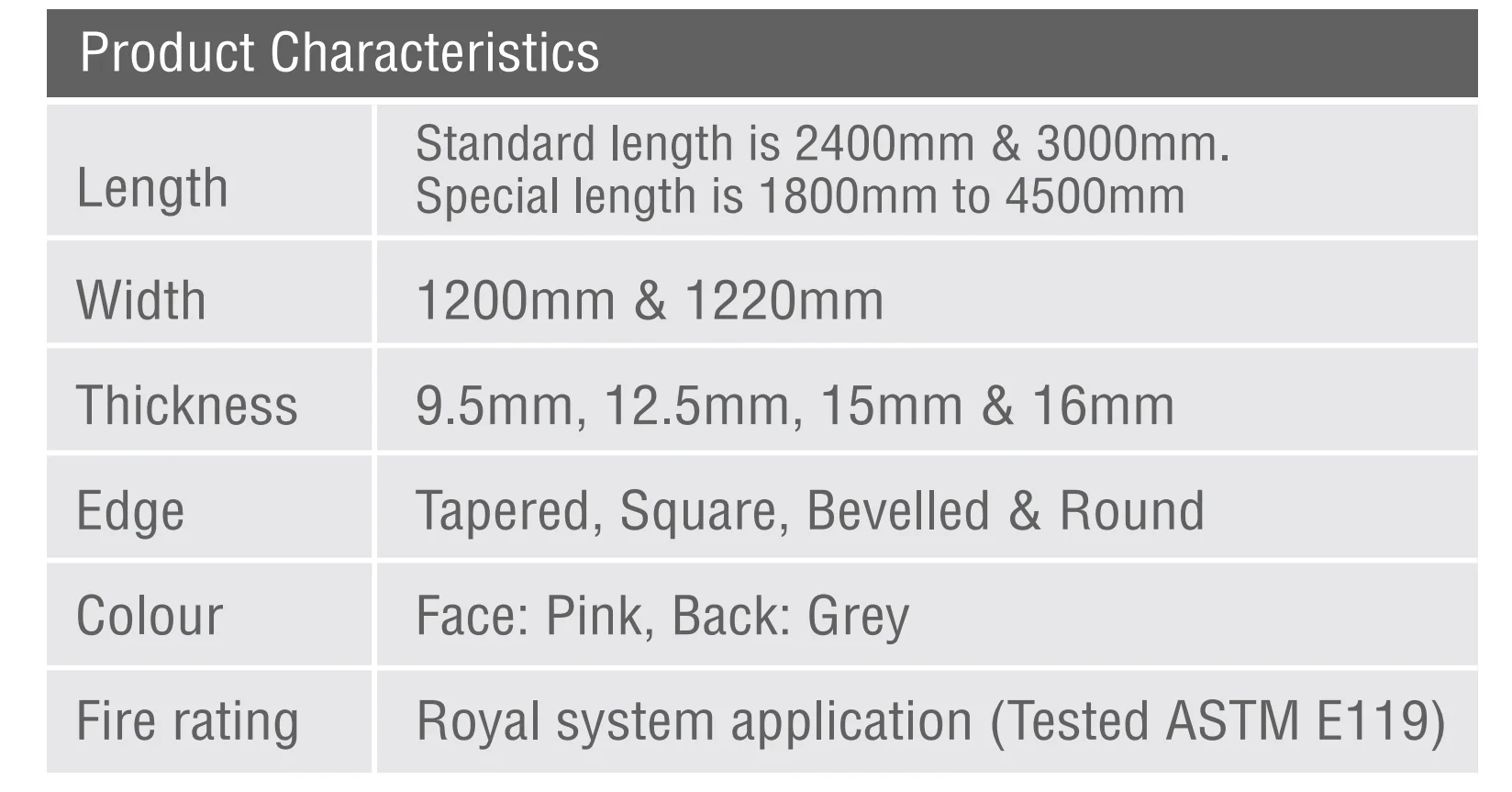

Technical Details of Fire Resistance Board
Description
Moisture Plasterboard is lightweight for use in standard internal wall and ceiling applications where Moisture Resistant properties is required. They are produced from high purity natural gypsum core being sheeted in a closely adhering best selected paper liners. Royal Gyp moisture Plasterboard has fibre glass which improves strength and Sag Resistance.
Field of Application
Moisture Resistant Plasterboard is used in Residential Buildings, Commercial Buildings, Hospitals. Airports, Educational Institutions and other such constructions.
Manufacturing Standards
Moisture Plasterboards are produced to ASTM c1396/C1396M & EN 250Type A & H1 standards Tested accordance to ASTM E84 & ASTM 473

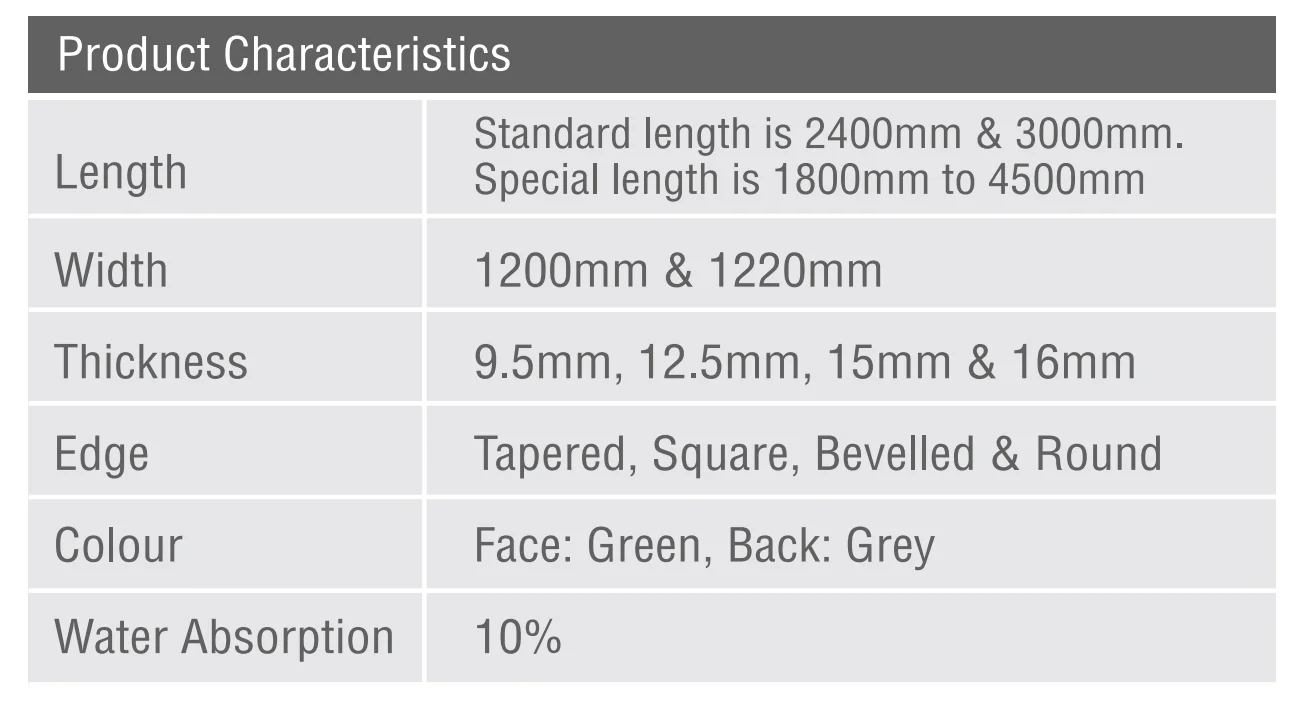

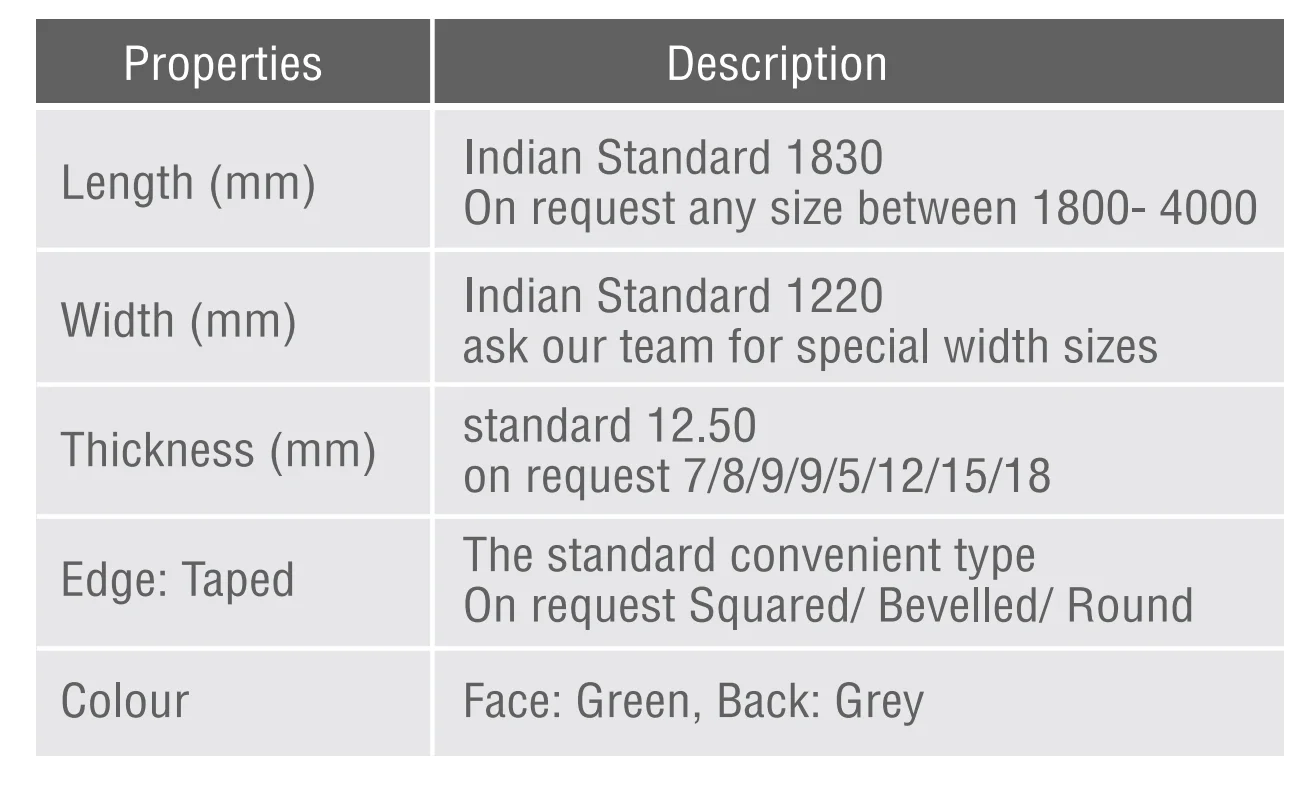

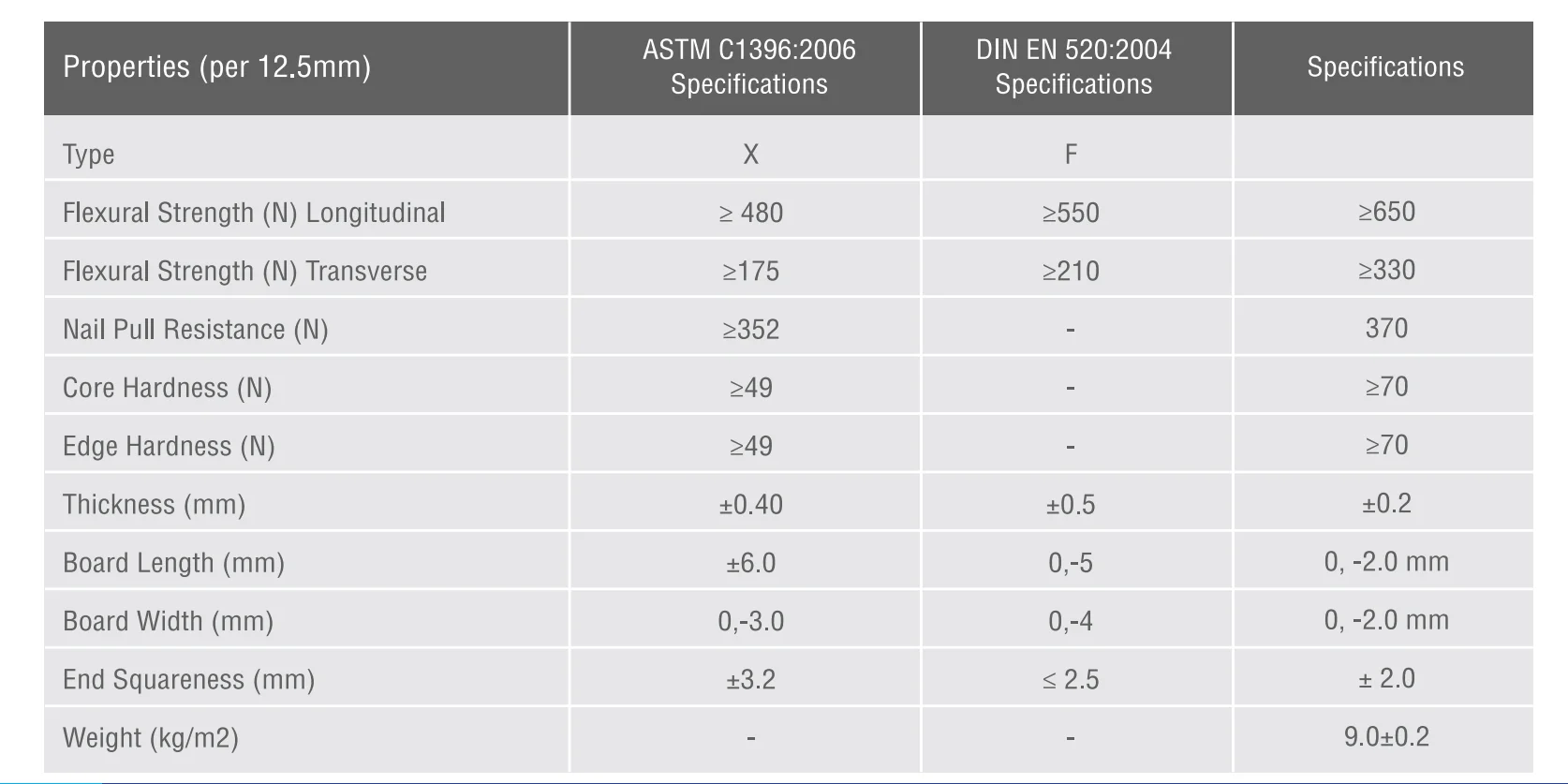

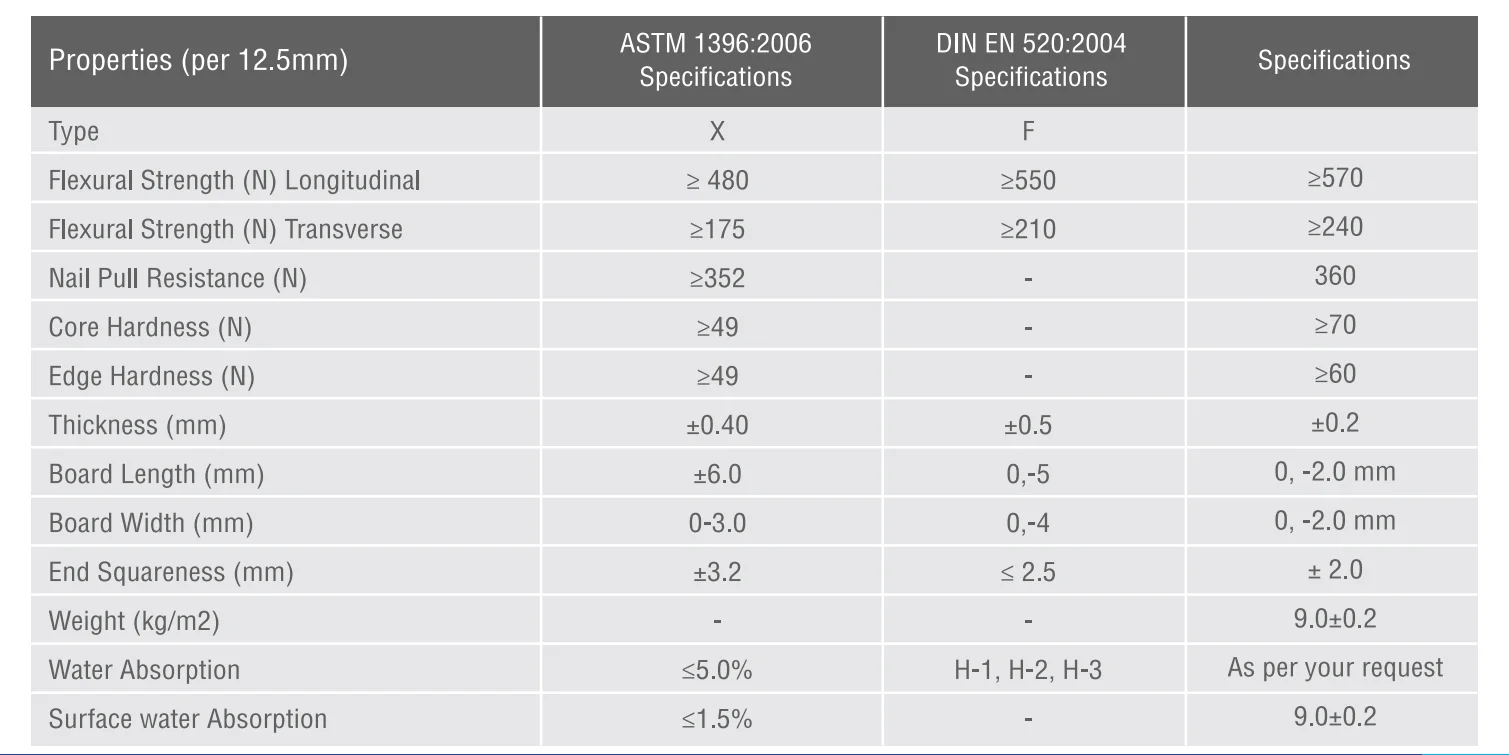

Technical Details of Moisture Plasterboard
Description

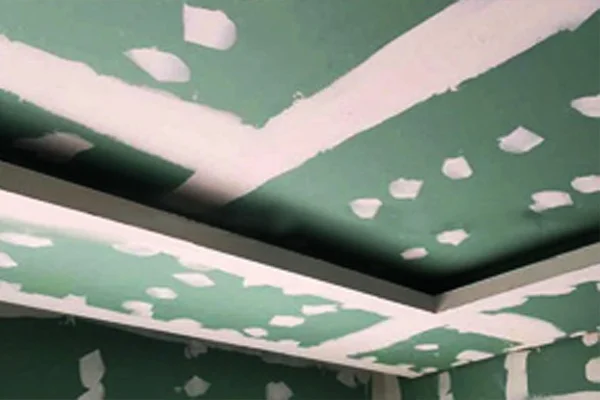

Fire & moisture Resistant Plasterboard is lightweight for use in standard internal wall and ceiling applications where fire & moisture resistance protection is required. They are produced from high purity natural gypsum core being sheeted in a closely adhering best selected paper liners.
Field of Application
Fire & moisture Resistant Plasterboard used in Residential Buildings, Commercial Buildings, Hospitals, Airports, Educational Institutions and other such constructions.
Manufacturing Standards
Fire & moisture Resistant Plasterboard are
produced to ASTM C1396 / C1396M Type X & EN 520 Type 1, F & H1 standards. Tested accordance to ASTM E84 & ASTM 473

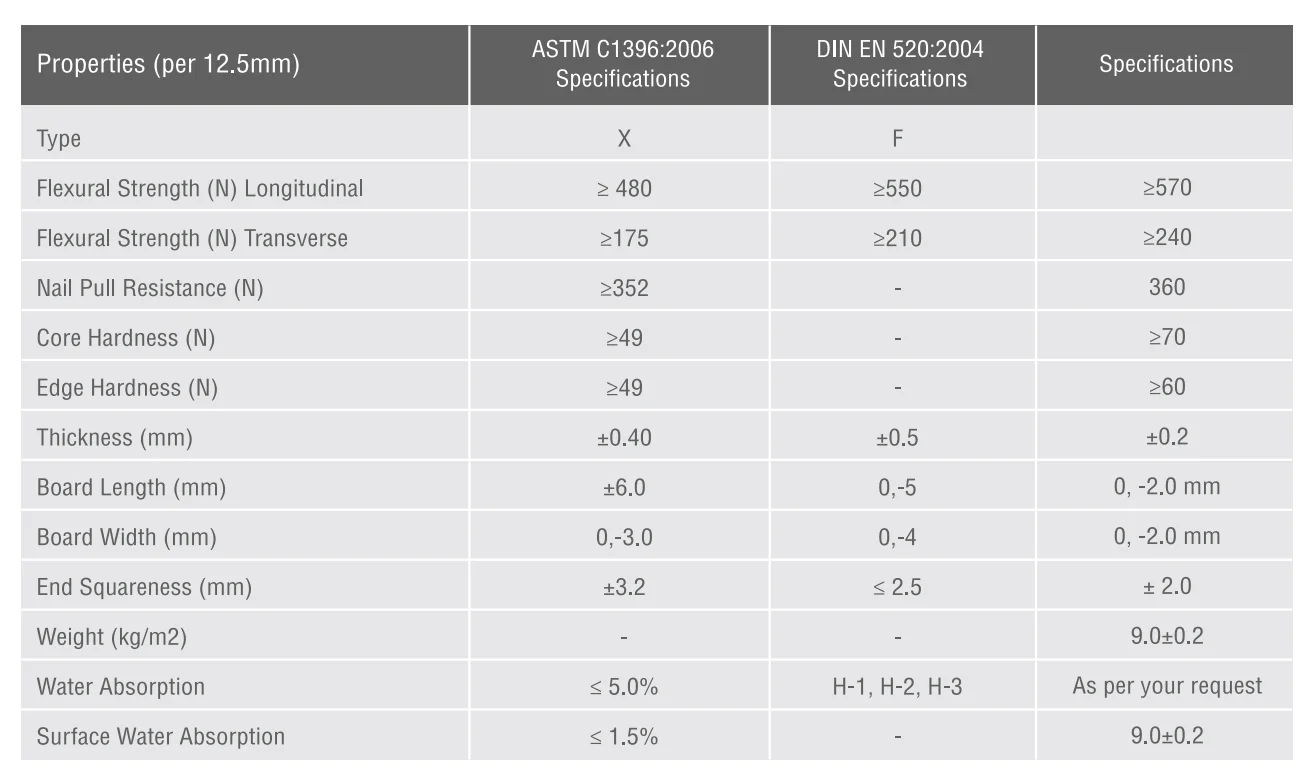

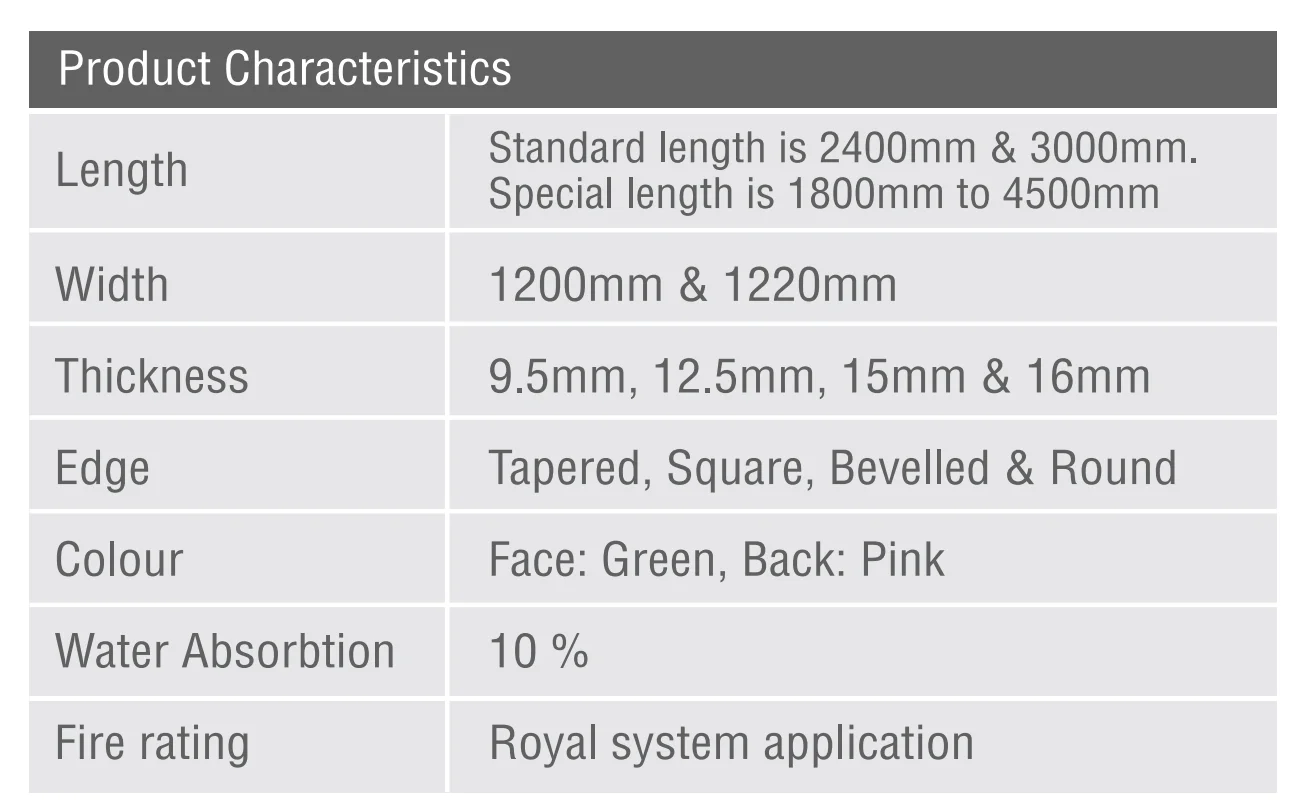

Technical Details of FR & MR Board

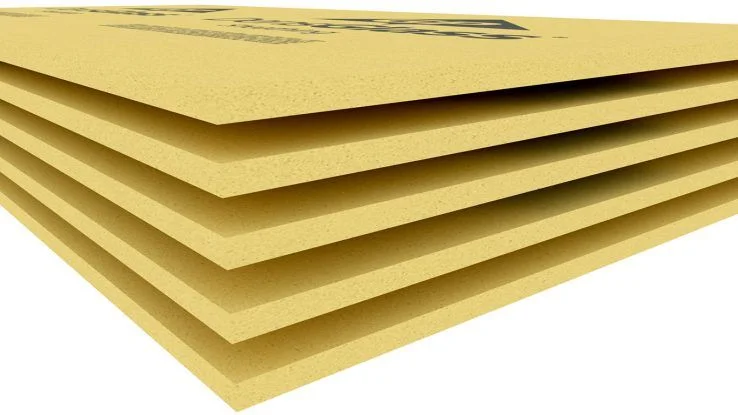

Description
Glass Mat Plasterboard is suitable for hybrid construction in multi-storeyed buildings. Royal Gyp Glass MAT Plasterboards are used in both exterior and interior use.
Field of Application
Glass MAT Plasterboard used in both exterior and interior use. Delivers fire, moisture, water and mole resistance in one board, due to the special additives in the gypsum core, that is sandwiched between the glass mat liner on both sides.
Manufacturing Standards
Glass Mat Plasterboards are produced to ASTM C1177/ C 1177M Type X & EN 15283 Part1

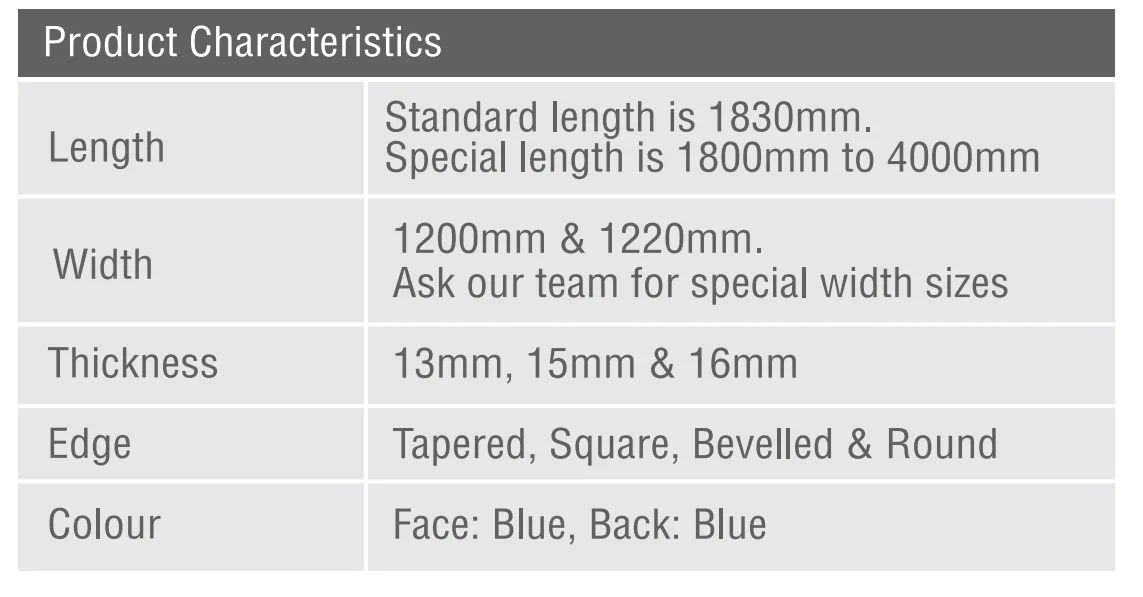

Technical Details of Glass MAT Board
Description
Impact Plasterboard consists of a high density reinforced gypsum core with glass fibers and special additives encased in a very heavy natural finish strong paper liners. It can be used where high impact resistance, non-combustibility and fire resistance is needed, Royal Gyp Impact Plasterboard is produced from high purity natural gypsum core being sheeted in a closely adhering best selected paper liners.
Field of Application
Impact Plasterboard is used in corridors, Busyareas, Residential Buildings, Commercial Buildings, Hospitals, Airports, Educational Institutions, and other such constructions.
Manufacturing Standards
Fire Resistance Plasterboards are produced to ASTM C1396 / C1396M Type X & EN 520 Type I, F standards. Tested accordance to ASTM E84 & ASTM 473

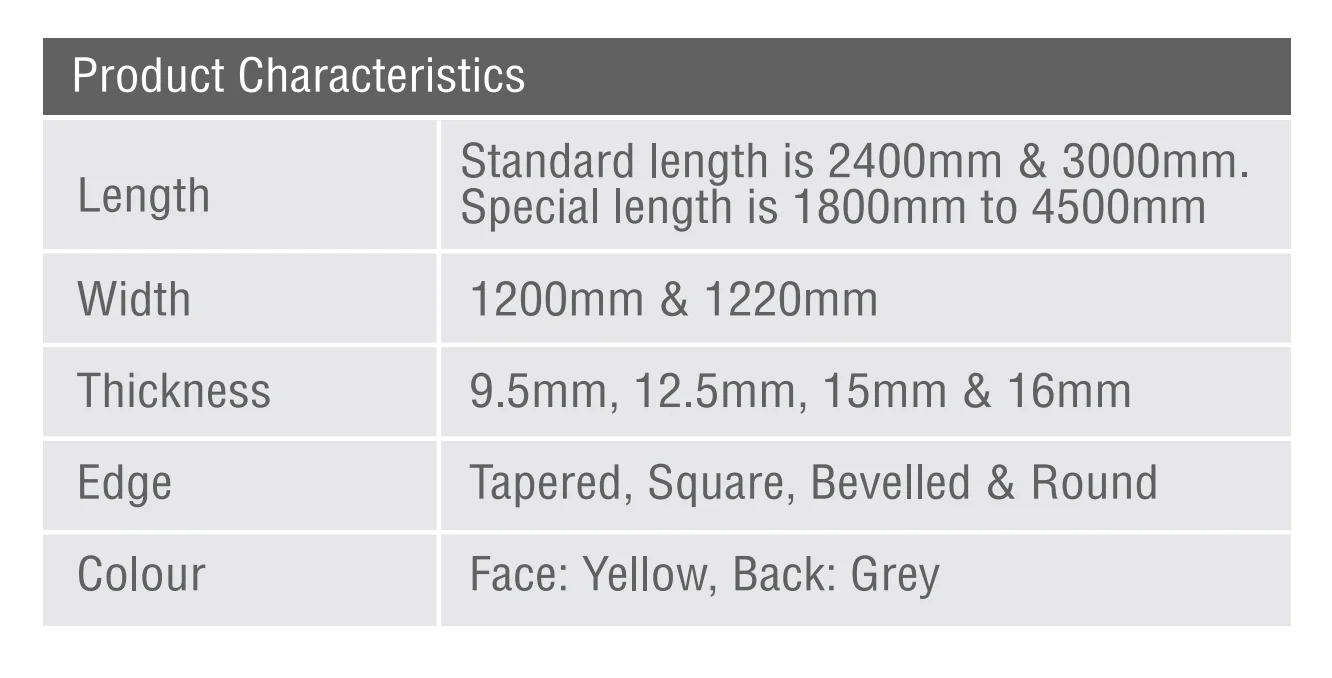

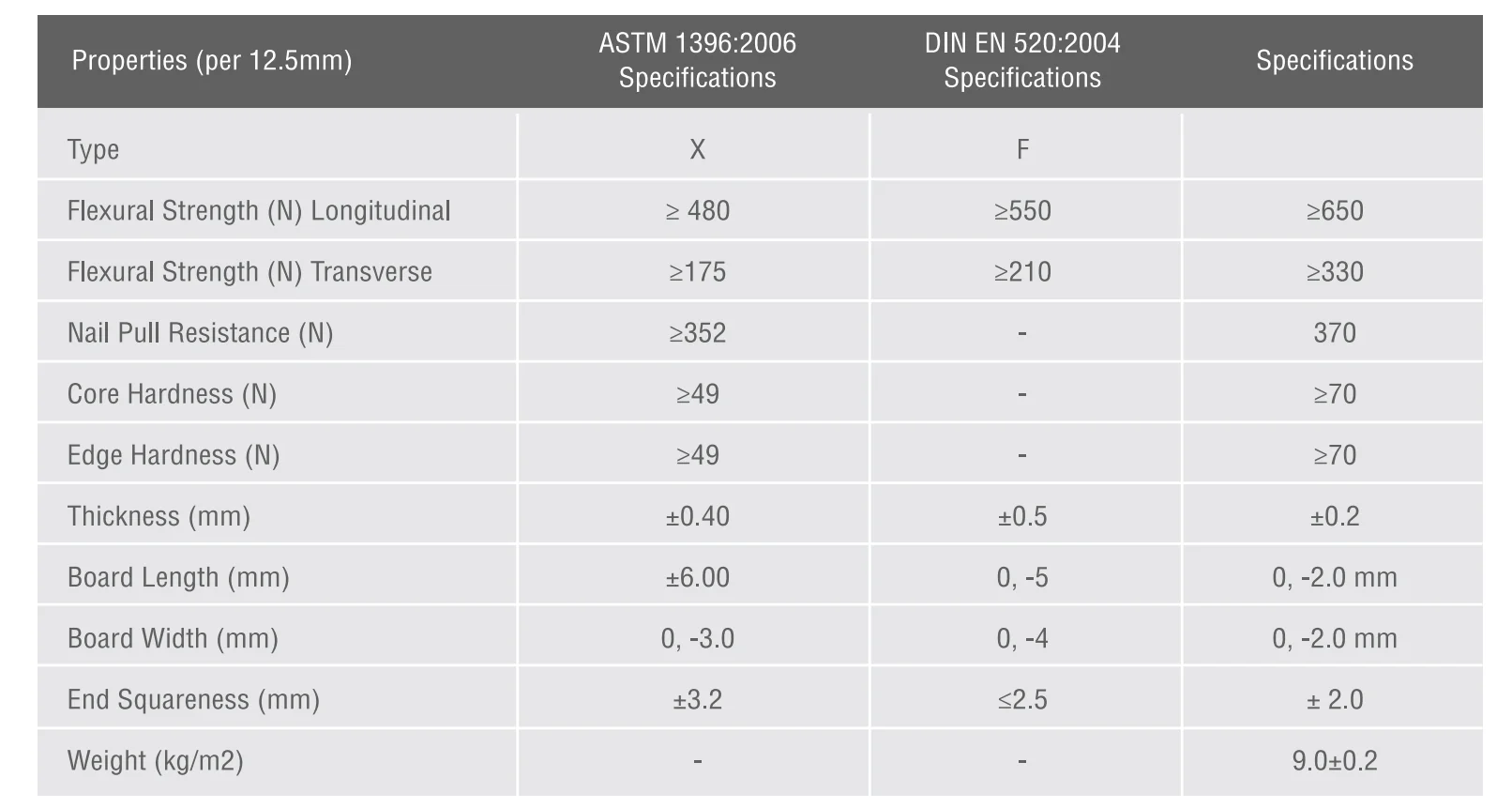

Technical Details of Impact Board
